55″ Interactive Whiteboard CM Series

AES-55 Dual OS - CM Series

The A&E Touch—A&E’s own interactive board—is faster, clearer, more responsive, and more user-friendly than any other interactive board on the market. The A&E Touch, as well as other interactive boards, can be enhanced by the A&E App Box, which enables interactive boards to operate with even greater speed and efficiency.

The A&E Touch—A&E’s own interactive board—is faster, clearer, more responsive, and more user-friendly than any other interactive board on the market.

Contact Sales

Main Features

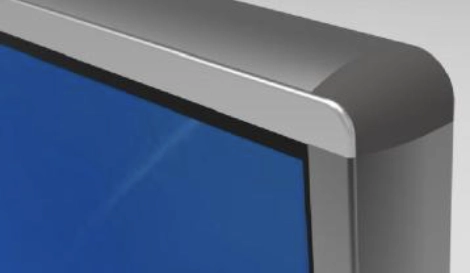

Excellent slim design with aluminum alloy edging
Ultra high 4K resolution and new original panel with TFT LED backlight
Sensitive 20 points IR touch
Support front button,quick switch touch, settings, home, recording, protect eyes,vol+/vol-
Built in professional Tempered glass (Anti-Glare glass optional)
Built in wireless projection and reverse touch control, support mobile and PC
Support wireless transmitter for wireless projection, plug and play (optional)
Windows PC can support Webcast function, PC can install one wireless project software, then can wireless project screen to interactive board, and can reverse touch control
Dual OS: Android OS and Windows OS available
Built in professional OPS computer, can customize CPU, RAM and storage(optional)
Built in professional whiteboard software, full 4K resolution user interface and GIF icons
Built in annotation function, can annotate on both Android and Windows OS, support QR scanning to download to mobile phone
Magnetic touch pen can be absorbed on the board’s front frame
VC module: 48M pixels camera or 48M pixels motion and audio tracking camera with 8 sound arrays system (optional)
CE,ROHS, TELEC, PSE, FCC, HDMI and ENERGY STAR certified
ISO9001 and ISO14001 certified

Display

Display Specifications

Display Screen

55"

Panel Back Light

TFT-LCD Module with DLED backlight

Panel Protection

Tempered Glass Anti-Glare glass (Optional)

Hardness

Aspect Ratio

16:9

Color

1.07b colors (8 bit)

Display Area

1210*678mm

Resolution

3840*2160

Brightness

350cd/m2

Contrast

4000:1

Response Time

5ms

View Angle

178° left and right, up and down

Life

Over 60,000 hours

IR Touch

IR Touch Specifications

Touch Type

Infra-red

Points

20 points

Response Time

Less than 5ms

Resolution

32767 * 32767

Position Accuracy

±1mm

Communication

USB2.0

Touch Way

Pen, Finger or other light-proof items

Life Time

Over 60,000,000 touches

Dual OS Configuration

Android Configuration

Dual OS Configuration Specifications

CPU

Dual OS Configuration

GPU

Mali-G52 MC1

RAM

DDR4 4GB/8GB

ROM

32G/128GB EMMC

WIFI

IEEE802.11an 2.4/5 GHz

Hotspot

IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz

RJ45 Network

Bluetooth

Support, can receive signal up to 12M

Android OS

Android 14.0

Windows OPS Configuration (OPTIONAL)

Client can choose from the Pro, Max or Max plus version for the OPS, we also can customize other configurations, pls check with sales separately.

Windows OPS Configuration Specifications

Sky Lake-S 6th Gen Processors

I3-6th Ge.

I5-6th Ge.

I7-6th Ge.

DDR4/RAM

4G/8G/16G/32G/64G (Optional)

Hard disk/SSD

SSD 128G/256G /512G/1TB (HDD 1TB Optional)

Graphics card

Intel® HD Graphics card 530 integrated

WIFI & BT

IEEE802.11an 2.4GHz+5G, BT4.2

Windows OS

Windows 8.1/10/11 trial version, Linux

Input/output Interface

Android I/O Interface

USB*2

HDMI IN*2

RS232*1

RJ45 IN*1

AV IN*1

Microphone

Input/output Interface Specifications

Front Port

USB*3

HDMI IN*1

TOUCH*1

TYPE-C*1

Rear Input Port

USB*2

HDMI IN*2

RS232*1

RJ45 IN*1

AV IN*1

Microphone

Rear Output Port

AV OUT*1

Touch*1

Earphone*1

SPDIF OUT*1

Bluetooth/WIFI

1x 2.4G built-in module,1x 5G built-in module

Bluetooth5.0*1

Windows OPS I/O Interface

Based on 6th Generation OPS (Only available with OPS built in, for customized OPS, the I/O interfaces are different)

Windows OPS I/O Interface Specifications

DP Output

DP OUT*1

HDMI Output

HDMI OUT*1

MIC IN

MIC IN*1

RJ45 Port

RJ45*1

USB Port

USB 2.0*2, USB 3.0*4

Type-C

Type-C*1

LINE-OUT

LINE-OUT*1

Power

Power*1

Restore

Restore*1

Accessories

Accessories Specifications

Remote Controller

Remote controller*1

Wall Mount Racker

Racker*1

Touch Pen

Free Touch Pen*2

User Manual

User Manual*1

Power Cable

Power cable*1

Others

Other Specifications

Net Dimension

1270*90*765mm

Package Dimension

1397*165*907mm

Net Weight

24KG

Gross Weight

31KG

Speaker

2*20W speakers (Front)

VESA

200*400mm

Color

Top and bottom in Silver, left and right in Black

Voltage

100 V ~ 240 V, 50-60 Hz

Power

≤ 160W

Working Temperature

0－40 ℃

White Board Software

Professional whiteboard software and wireless sharing software under Android OS
It supports gesture recognition, supports three fingers touch can call floating menu following, five fingers touch can call power on/off screen; and can be recognized as pen and erasing function by changing the touch area. It also supports erasing while writing
Support mobile phone wireless project, and reverse control
Built in eraser function, support hand gesture erasing
Annotation function, can annotate on both Android and Windows OS, and the annotation content support QR scanning to download to mobile phone or can be saved locally in the interactive board
QR code sharing, can download the content by QR scanning directly
Recording both the audio and pictures in MP4 format; Support wireless projection function, both mobile and PC
It supports the intelligent U disk lock function, the whole machine can be set to touch and key lock
Intelligent character recognition of the hand writing words and change to the standard English fonts, and support Google search the the hand writing words through web browser by opening a new window
Support half screen mode, pull down the upper part of the Windows display screen to the lower part of the display screen, and you can still operate the Windows system normally by touching

EShare Wireless Transmitter (OPTIONAL)

Model: HDT1

Wireless projection, support project the PC signal to the interactive board, and reverse control
Featured with ultra-low power consumption
Classic design with plastic case and LED lighting
Plug and play, no more software need to install
Support dual band of 2.4G&5.8G,more stable and fast transfer
Transfer audio and video up to 1080P resolution and 30FPS

Detailed Specification

Interface

USB2.0 (5V/500mA)

Supported OS

Windows 7 and above, macOS 10.10 and above

PC Minimum Spec

Frequency: 1.8GHz and above; RAM: 2G and above

Input Resolution

Input resolution support up to 3840*2160

Project Resolution

1080P@25~30fps

Audio Transfer

44.1KHz/16bit, stereo audio

Wireless Project

Plug and play, auto run, no need to install any software

Wireless Protocol

IEEE 802.11ac / 802.11n

Wireless Band

2.4G&5.8G

Wireless Distance

Maximum 35M

Transmission Delay

Less than 50ms

Reverse Touch Control

Reverse touch control, maximum support 10 points touch

Extended Screen Transfer

Windows 10 PC can wireless transfer extend screen

EShare Wireless Solution Control Software

Control Software Main Features

File Push Function

Support push picture, video, audio and Office file to locally display

File upload function

Upload any files wirelessly to the interactive board, users can download this file and display in the screen

Intelligent control

Intelligent control function: Wireless Touch Mouse, air mouse, Wireless keyboard Voice Handwriting input, Wireless Touchpad, Remote control for common keys(Home Menu Back Vol+/-…etc.)

Wireless Camera

Support wireless camera

Annotation

Mobile phone and Windows PC can do wireless annotation to the interactive board screen

TV Mirror

The interactive board screen can be shared to a mobile device wirelessly, and this mobile device can reverse touch control interactive board screen simultaneously

Split Screen Display

Can wireless project 9 mobile devices signals to the interactive board screen with 9 split screens display

Moderator Control

The moderator can control the permissions of the client devices, such as screen transfer, reverse screen transfer, touch, annotation and exclusive screen display

Airplay

Compatible with AirPlay protocol, any iOS devices can use AirPlay function to wireless project screen without install any APP

DLNA Protocol

Compatible with DLNA protocol, any App which support DLNA protocol can wireless project screen to the interactive board screen

iOS Project

iOS devices can wireless project screen to interactive board screen, and can reverse touch control the iOS devices through the interactive board screen

Android Project

Android OS devices can wireless project screen to interactive board screen, and can reverse touch control the Android OS devices through the interactive board screen

Extended Screen Project

Wireless Dongle terminal can do extended screen wireless transfer for the Windows 10 devices

Screen Group Display

Support the simultaneous transmission of one single signal to multiple interactive board screens for synchronous display with the wireless receiver product
